Features
lUltra-compact size
lLow Insertion Loss
lHigh Power Resistance
lPolarization Maintaining Output
lRoHS Compliant
Applications
lHigh Power Amplifier
lLidar
lFree Space Communication
Brand:

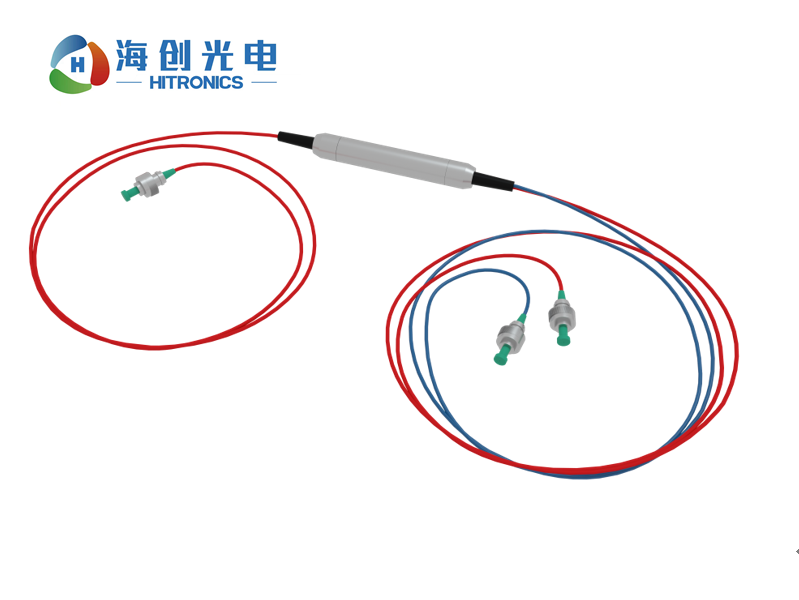

HitronicsHitronics supplies a wide variety of polarization-maintaining components, designed for different polarization-dependent applications, which are becoming increasingly important in today's LiDAR and free-space-optical communications.
By maintaining the polarization of the signal in the path, Hitronics' polarization-maintaining components minimize polarization mode dispersion and eliminate the effect of polarization-dependent loss thereby increasing the quality of the signal.
Features: |
Applications: |
|
|
| Parameters | Conditions | Unit | Min. | Type. | Max. |
| Operating wavelength | nm | 1540 | 1550 |
1565 | |
| Insertion loss,(1-3) |
λop, Top | dB | - | - | 0.6 |
| Return loss | Output 1/2 -Com | dB | 50 | - | - |
| Directivity | λop, Top | dB | 50 | - | - |
| Polarization Extinction Ratio | λop, Top | dB | 20 | - | - |
| Axis Alignment Type | λop, Top, Output 1/2 | - | Slow axis working | ||
| Average Optical Power Handling | Output 1/2 | W | 5 | - | - |
| Tensile Load | Each port | N | 5 | - | - |
| Fiber Type |
- |
Output Port 1/2: Corning PM 15-U25D(PM Panda Fiber); Input Port: SMF 28e fiber on Port3 |
|||
| Fiber Length | m | 0.7 | - | - | |
| Operating Temperature | ℃ | -40 | - | 105 | |
| Storage Temperature | ℃ | -40 | 115 | ||
| Size | mm | 5.5*40 | |||
