Parameter |
Unit |
SWDM |
CWDM |
LWDM |
||
|
Operation Wavelength |
nm |
840~960 |
1250~1350 |
1280~1330 |
||
|
Center Wavelength(λc) |
nm |
851/881 |
1271/1291 |
1295.56/1300.05 |
||
|
911/941 |
1311/1331 |
1304.56/1309.14 |
||||
|
Passband(PB) |
nm |
>λc±8 |
>λc±6.5 |
>λc±1.05 |
||
|
Max. Insertion Loss @PB |
dB |
<1.0 |
<1.0 |
<1.0 |
||
|
IL Uniformity @PB |
dB |
<0.4 |
<0.4 |
<0.5 |
||
|
PDL@ Passband |
dB |
<0.25 |
<0.25 |
<0.25 |
||
|
Adjacent CH Crosstalk @PB |
dB |
>25 |
>25 |
>25 |
||
|
Non-Adj. CH XT@PB |
dB |
>30 |
>30 |
>30 |
||
|
Typical A.O.I( in air) |
Deg. |
8/13.5, etc. |
8/13.5, etc. |
8/13, etc. |
||
|
Pitch |
um |
500/750/900/1000/1100/1500, etc. |
||||
|
Clear Aperture |
mm |
|
- |
- |
||
|
Beam Parallelism |
Deg. |
<0.2 |
<0.2 |
<0.2 |
||
|
Edge chip |
mm |
<0.1 |
<0.1 |
<0.1 |
||
|
Corner chip |
mm |
<0.2 |
<0.2 |
<0.2 |
||
|
Surface quality |
- |
40/20 |
40/20 |
40/20 |
||
|
Operation temperature |
℃ |
-20 ~ +85 |
-20 ~ +85 |
-5 ~ +75 |
||
|
Storage temperature |
℃ |
-40 ~ +85 |
-40 ~ +85 |
-40 ~ +85 |
||

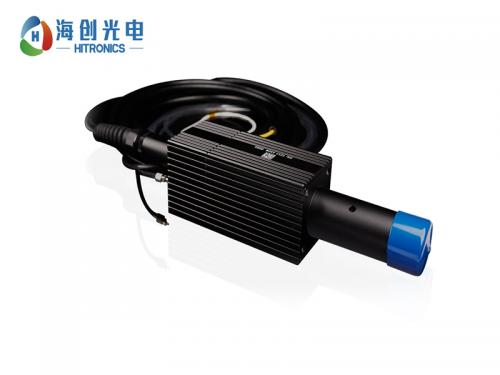

SPM - Solid-state Photodetector Module to retrofit PMT, higher sensitivity and reliability, lower cost.
