Endoscope Lens
Endoscope Lens

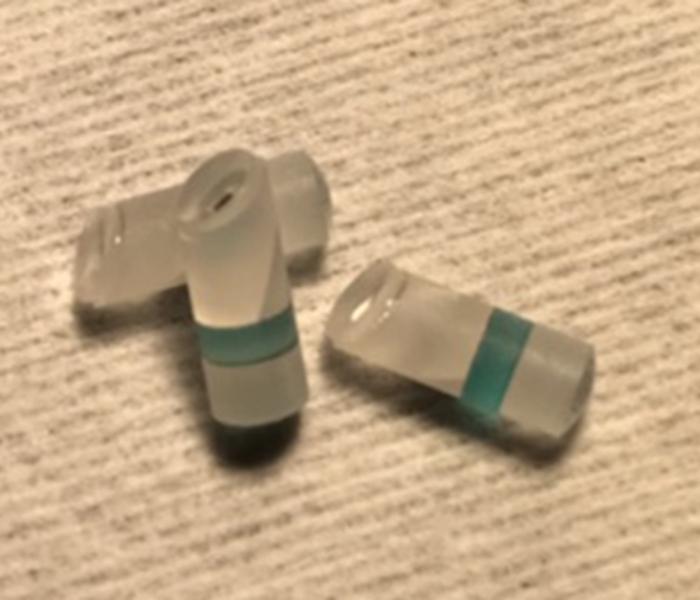

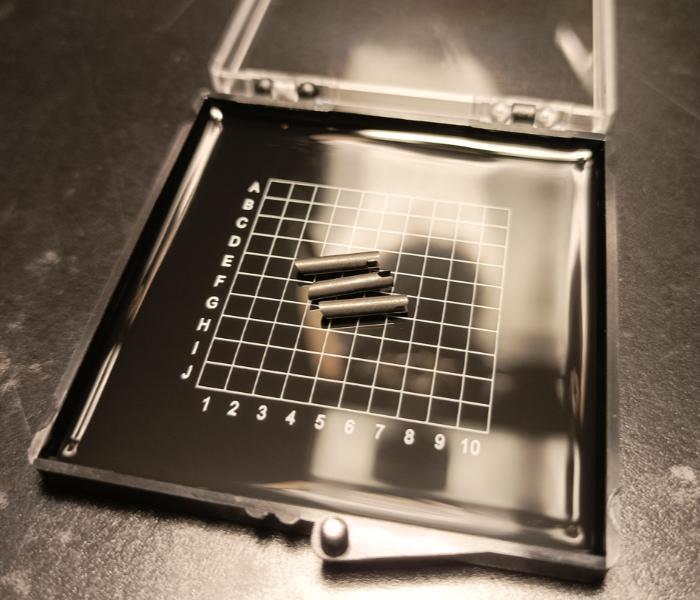

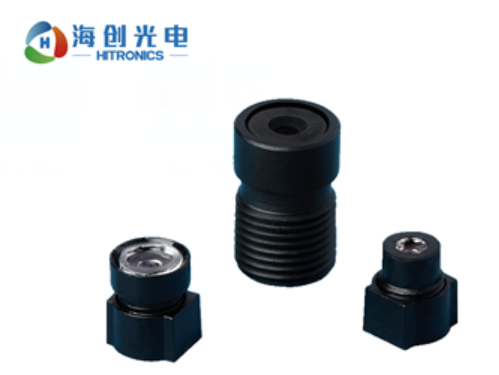

Micro Lens And Lens Assembly For Endoscope

Wide depth of field

Large FOV

Compact Size

High Resolution

  • Brand:

    Hitronics



Micro Lens And Lenses Assembly For Endoscope

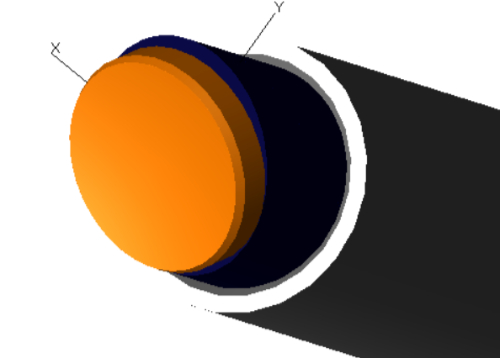

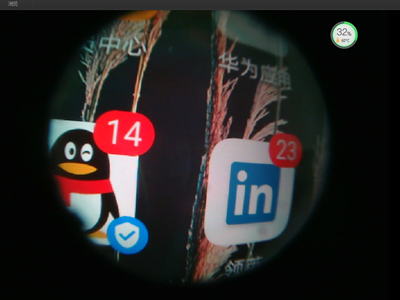

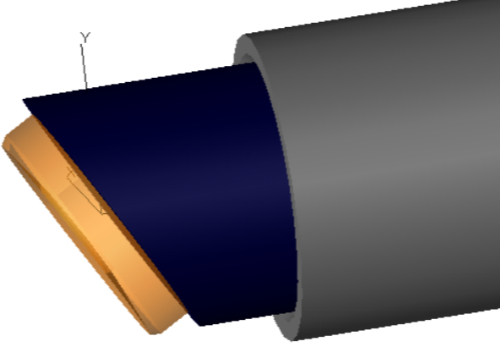

Endoscope Lens Simulation and Configulation





Key Parameters:

Sensor Size: 1/6,1/10,1/11, 1/18 inch optional Real /Clear /Simple
Out Diameter: 1.8mm, 2.6mm, 3.5mm and custom
Total Length: 1~20mm
Resolution: >4K
FOV(Field/Angle of View): 60°~140°
DOF(Depth of Field): 3mm~125mm
Obejective Distance: Typical: 8mm, 10mm and custom
Extreme Temperature Test: -40°~70°
Objective Lenses Temperature Test: >120°
Flexible: 360° swivel
Waterproof: Yes
Biological Compatibility Requirements: Meet




Test Metrology

MTF

OptiCentric



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products

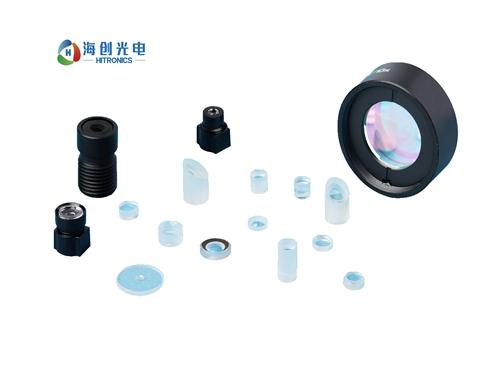

  • Micro Objective Lens
