Wide depth of field Large FOV Compact Size High Resolution

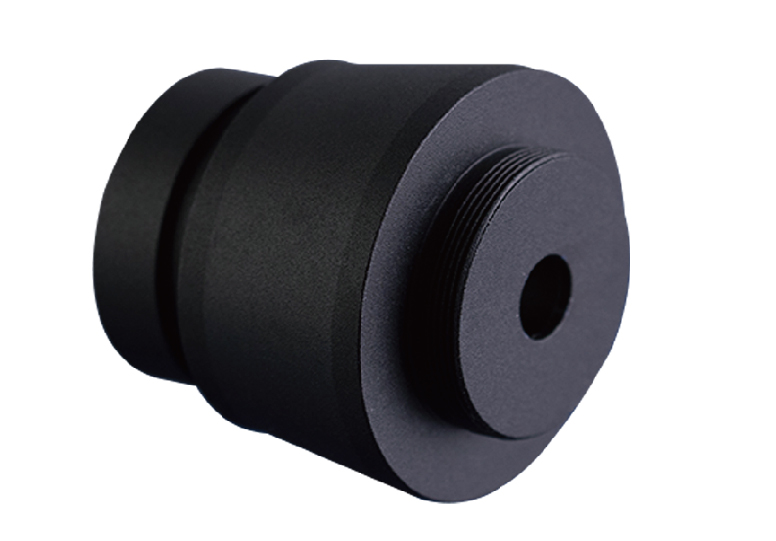

LD Collimator Lens Features: Wavelength range 532~1550nm Focal lengths up to 20 mm Diffraction-limited performance Benefit from the quality and performance of all-glass aspheric lens Choice of fiber receptacles FC/PC, FC/APC and SMA Customized service

SPM - Solid-state Photodetector Module to retrofit PMT, higher sensitivity and reliability, lower cost.

Fast sample lead time 28 days. AR Coatings for High Transmission Through UV, Visible, and NIR Wavelength Ranges. Compatible with Thorlab, Nikon, Leica, Mitutoyo, Olympus, and Zeiss Objectives and any customized microscope.

  Compact Size: ≥80*49.5*20mm³      High power：4KW Eye-safe              -40°~85° Temperature Low Consumption: < 40W Low SNR: ＜5%@250kHz, 3ns

Large Target Telecentric Lens Features: Wavelength range 400~820nm Magnifcation:0.23 Effectively improving image clarity High resolution, low distortion Coaxial & Non-coaxial illumination More uniform illumination than traditional light sources Application: SMT Visual Inspection Printing Inspection SMC Inspection Insertion Inspection Wave Soldering Inspection Reflow Oven Inspection

  Compact Size: ≥50*70*19mm³      Eye-safe              -40°~105° Temperature Low Consumption: < 13W Measuing Distance: 200~1500M

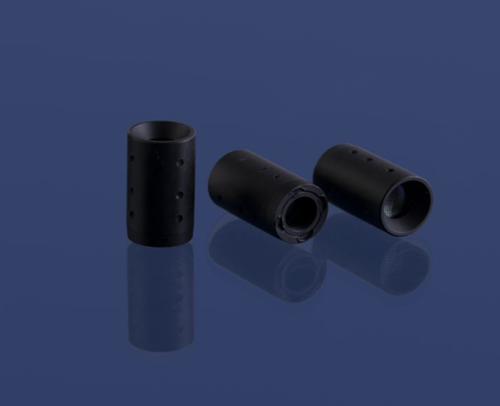

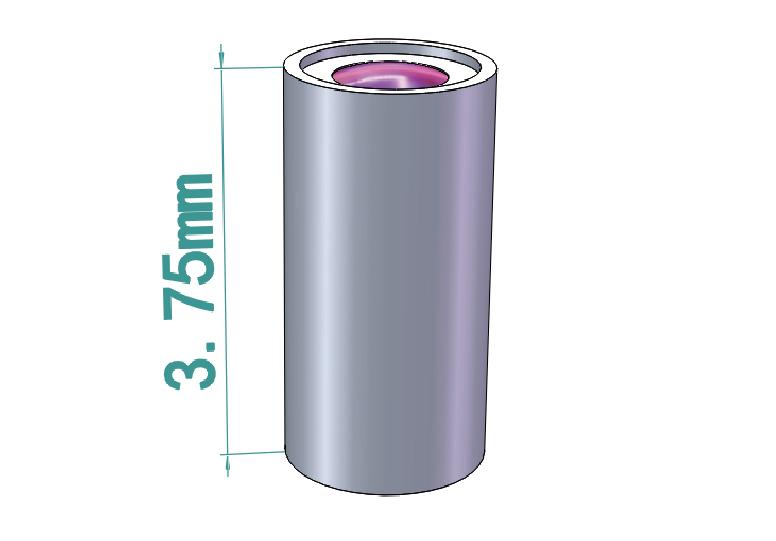

At the beam expander output, we work with a collimating lens to convert divergent light beams into parallel beams at the beam expander output and collecting the light. Also a collimated lens can be attached to a light source directly for adjusting the focus position. These custom collimated lens have collimating light beams with high optical efficiciency, minimized divergent angle and energy loss.
