Collimating Lens

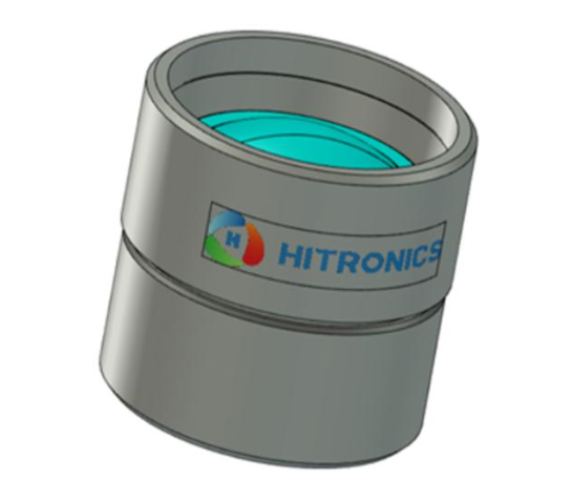

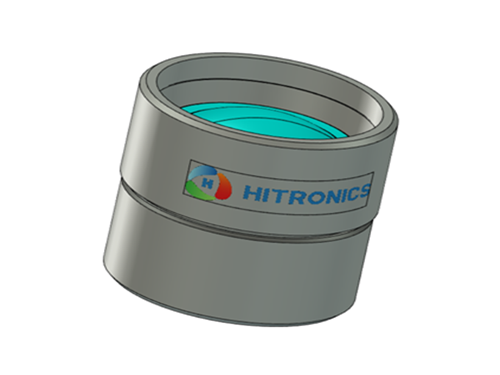

Custom Beam Light Collimated Lens

At the beam expander output, we work with a collimating lens to convert divergent light beams into parallel beams at the beam expander output and collecting the light. Also a collimated lens can be attached to a light source directly for adjusting the focus position. These custom collimated lens have collimating light beams with high optical efficiciency, minimized divergent angle and energy loss.

Custom Beam Light Collimated Lens



Lens Design Simulation



Key Parameters:

Features:

Applications:

  • N.A.: 0.2~0.75
  • EFL Tolerance : ±1%
  • S/D: 60/40
  • DW: 633nm,780nm
  • Wavelength: 400nm-700nm,700nm-1100nm, from UV to visible to long wave infrared range
  • Custom Design
  • Minimized Beam Angular Divergence
  • High Accuracy and Resolution of Beam
  • Lower Energy Loss
  • Spectrometer
  • Beam-Expander System
  • Display Measuring System
  • Laser Illumination System
  • Fiber Coupler
  • Sensor testing system



Custom-designed beam light collimating lenses allow users to control their  field of view,spatial resolution and optimize light collection efficiency of various instruments in different setups.



Hitronics could design, sample and mass produce the optimal collimating lens for your devices and instruments based on a few parameters such as focal length, wavelength, diameter, divergence and beam size.

Custom beam light collimated lenses make allow users to control for the field of view, spatial resolution and light collection efficiency of their instruments or setups.



Test Metrology

MTF

OptiCentric



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
  • Industrial Lens
    Industrial F-theta Lens

    F-theta Lens Features: •        For laser marking, engraving, drilling, cutting and soldering systems •        Main wavelengths: 355nm, 532nm and 1064nm •        UV fused silica for high-power laser applications •        Low field-curvature and good focus quality throughout the entire image field

  • Wholesale OEM and ODM LD Collimator Lens

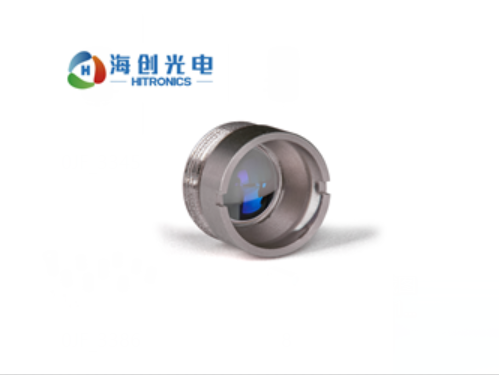

    LD Collimator Lens

    LD Collimator Lens Features: Wavelength range 532~1550nm Focal lengths up to 20 mm Diffraction-limited performance Benefit from the quality and performance of all-glass aspheric lens Choice of fiber receptacles FC/PC, FC/APC and SMA Customized service

  • Wholesale OEM and ODM Optical fiber Collimator Lens

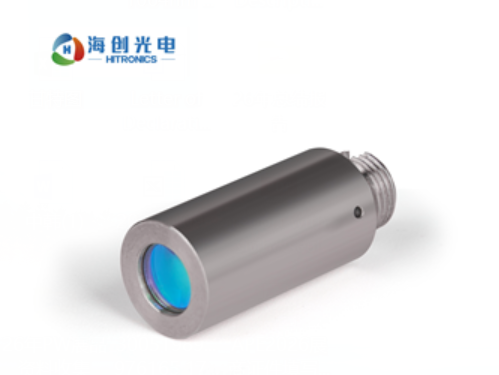

    Optical fiber Collimator Lens

    Optical fiber Collimator Lens Features: Wavelength range 532~1550nm Focal lengths up to 20 mm Diffraction-limited performance Benefit from the quality and performance of all-glass aspheric lens Choice of fiber receptacles FC/PC, FC/APC and SMA Customized service Application:   Biomedical Optical fiber communication

  • Industrial Lens

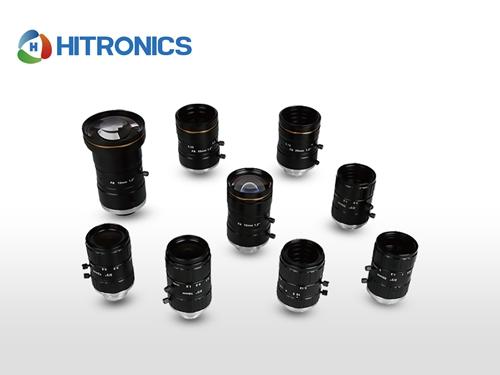

    Machine Vision Lens
