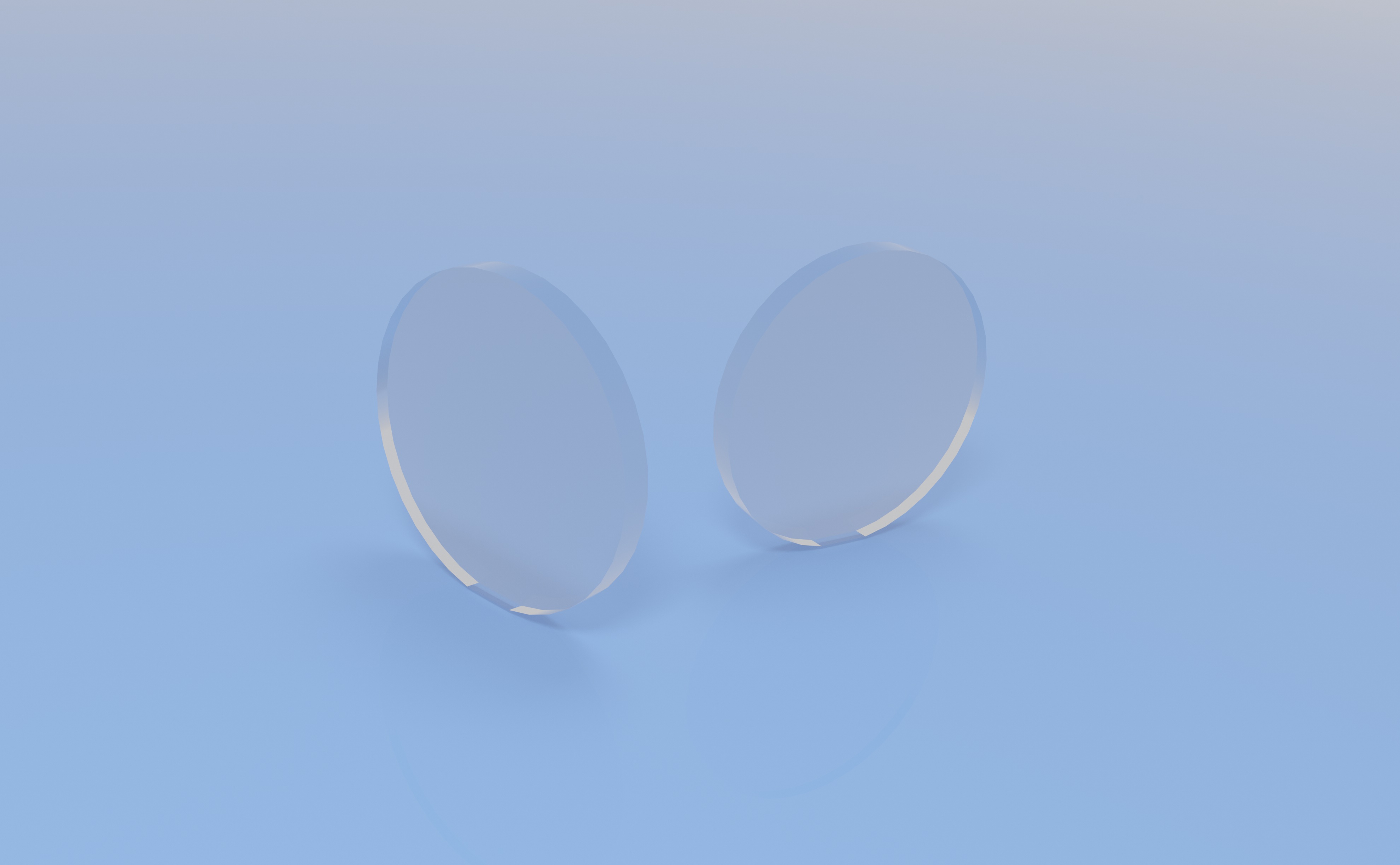

High precision free-form optics——Toroidal Lens(also known as hyperbolic mirrors), have two curvatures in the x and y directions, the two directions are shaped separately. After coating with the reflective film, they can be used for large angle reflection of light path.
Brand:
HitronicsToroidal lenses
Features: |
Applications: |
|
|
Performance Spec：
| Material： | Optical glass, Fused silica |
||
| Dimension： | 10 - 200mm | ||
| Tolerance of dimension： | ±0.01～±0.2mm | ||
| Tolerance of thickness ： |
±0.01～±0.2mm | ||
| Radius of curvature： |
R30～R∞ | ||
| Centration： |
< 3′ | ||
| S/D： | 20-10 | ||
| Surface figure： |
λ/4 @632.8nm | ||
| Surface roughness： |
< 1nm RMS | ||
| Coating： | Customized | ||
 |
 |
|
Mahr LD-260 |
LUPHOScan 3D |
