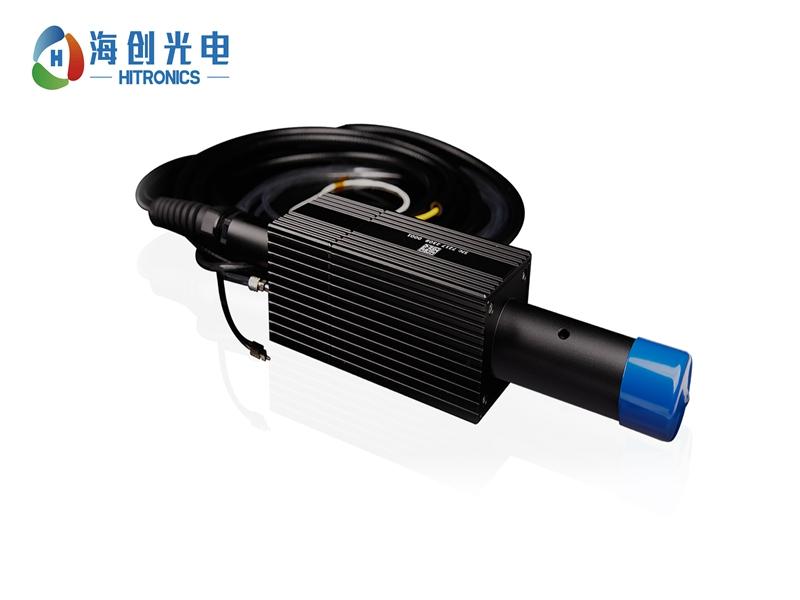

中文1064nm 1000W High-Power Collimated Output Fiber Laser Isolator
- Dimension: 358.6*62*62mm³
- High Isolation
- Low Insertion Loss
- High Power
- Good beam quality and consistency
Brand:
Hitronics
Brand:
Hitronics
Features: |
Applications: |
|
|
| Parameter | Unit | Spec. | ||
| Minimum | Typical | Maximum | ||
| Central Wavelength | nm | - | 1064 | - |
| Isolation(@23℃) | dB | 28 |
- | - |
| Transmission(at 23 ℃,λc) | % | 92 | - | - |
| Transmission(at 632.8nm) | % | 20 | ||
| M2 degradation | % | 12 | ||
| Thermal lens offset | mm | 3 | ||
| Return Loss | dB | 50 | - | - |
| Output Beam Diameter(4Sigma) | mm | 6.5 | 7.0 | 7.5 |
| Cooling Mode | - | Water-cooled | ||
| Ellipticity | % | 90 | - | - |
| Armed Cable Length | m | - | 4 | - |
| Armed Cable Diameter | mm |
- |
10(black) | - |
| Fiber Length | m | 5 | - | - |
| Fiber Type | - | Nufern, LMA-GDF-30/250 | ||
| Fiber NA | - | 0.06 | 0.065 | 0.07 |
| Operating Average Power | W | - | 1000 | - |
| Operating Peak Power | kW | - | 30 | - |
| Operating Temperature | ℃ | 0 | - | 40 |
| Storage Temperature | ℃ | -20 | - | 60 |
