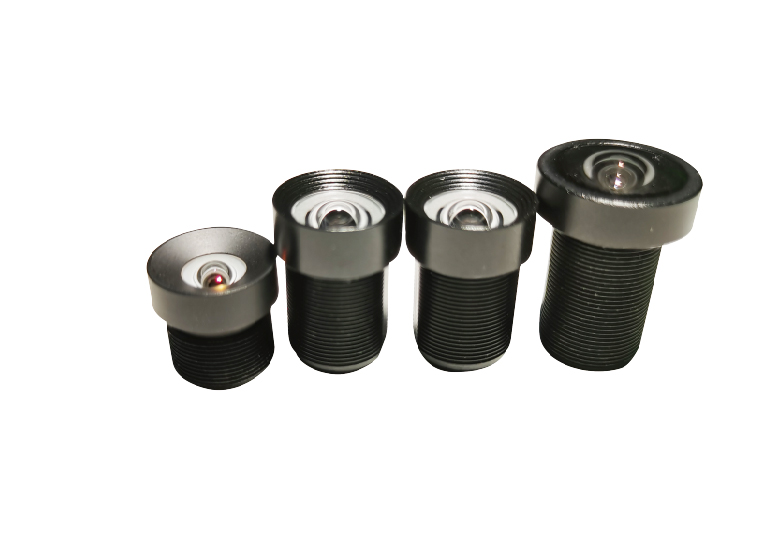

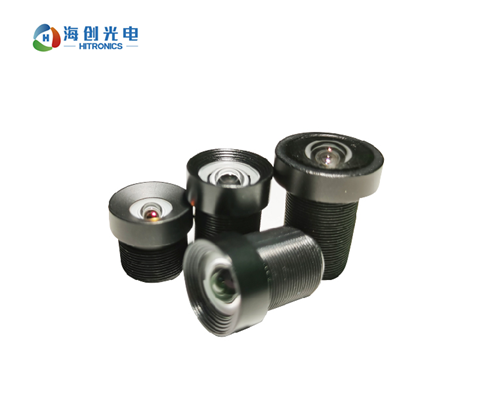

Wide depth of field Large FOV Compact Size High Resolution

High precision free-form optics——Toroidal Lens(also known as hyperbolic mirrors), have two curvatures in the x and y directions, the two directions are shaped separately. After coating with the reflective film, they can be used for large angle reflection of light path.

For high precise medical test (urine, fecal analysis) 0.1mm Pathlength or Customized Outer Dia(H*W*D) and Channels: Customized Connection angles of inner hole: 0°，30°，60° and others Double polished window make you a clear world in use Full Wavelength: 300nm~3000nm Special Tech: Etch, Optical bonding Working temperature: ＜100℃

F-theta Lens Features: •        For laser marking, engraving, drilling, cutting and soldering systems •        Main wavelengths: 355nm, 532nm and 1064nm •        UV fused silica for high-power laser applications •        Low field-curvature and good focus quality throughout the entire image field

LiDAR Lens •        TX module：specially designed for fiber laser, EEL, VSCEL or other light sources •        Scanning system：rotating mirror, galvanometer, MEMS，etc •        RX module：can be developed for various detectors(e.g. APD and array/SiPM/SPAD) •        TS16949 Compliant

High Precision Optical Reflecting Deflecting Displacement Rotation and Dispersion Prisms are choosen by Microscopes, Optical Instruments, Binoculars, Telescopes, Periscopes, Surveyring equipements and many sophisticated Scientific Instruments including Interferometers, Spectrophotometers and Fluorimeters.

High-Precision Freeform Optics Aspheric Lens, Prototype in 15 days, Capacity＞6K / month, CNC Polished, PDT or Molding process are optional.

High Power PM Circulator Features lUltra-compact size lLow Insertion Loss lHigh Isolation lHigh Power Resistance lPolarization Maintaining Output lRoHS Compliant Applications lHigh Power Amplifier lLidar lFree Space Communication
